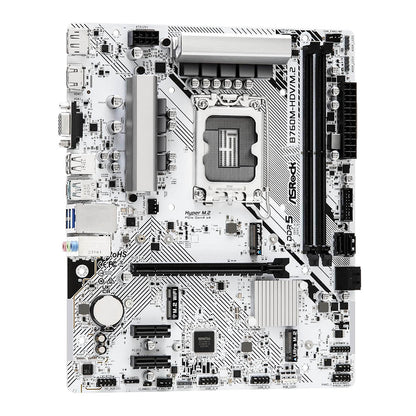

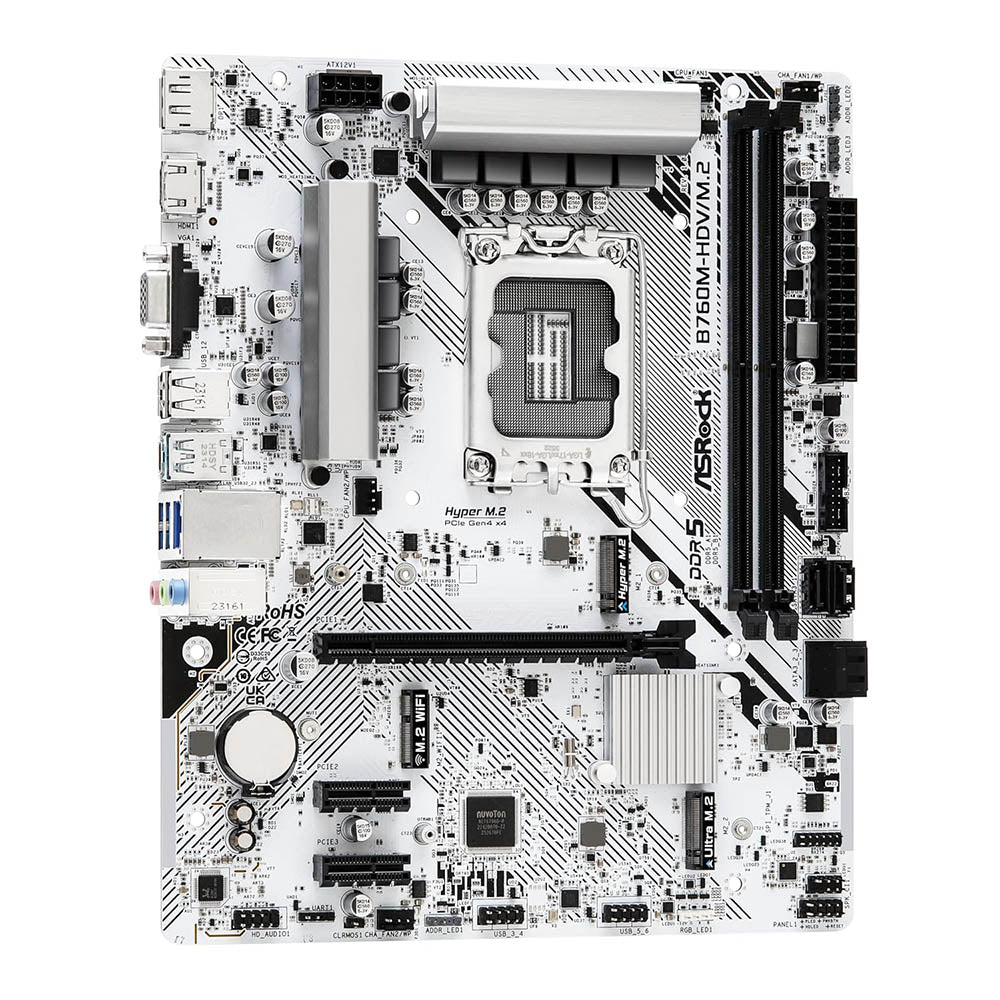

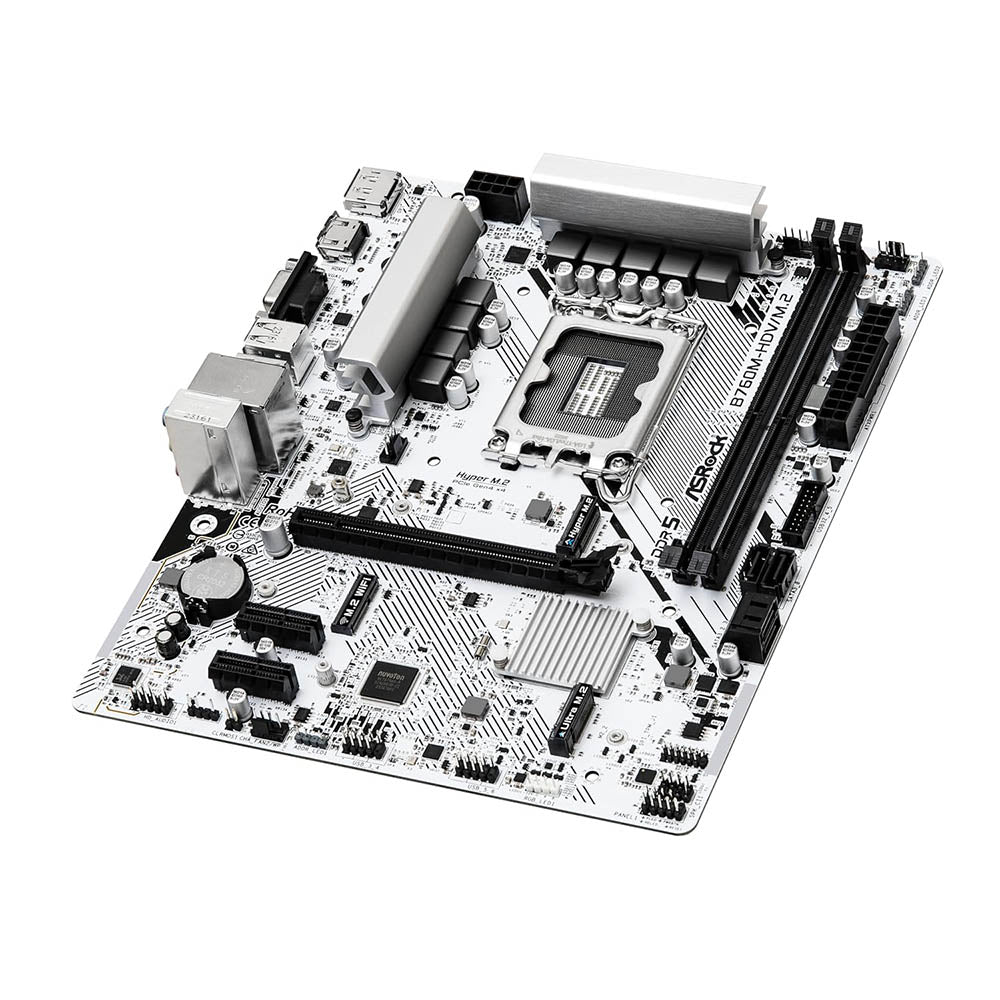

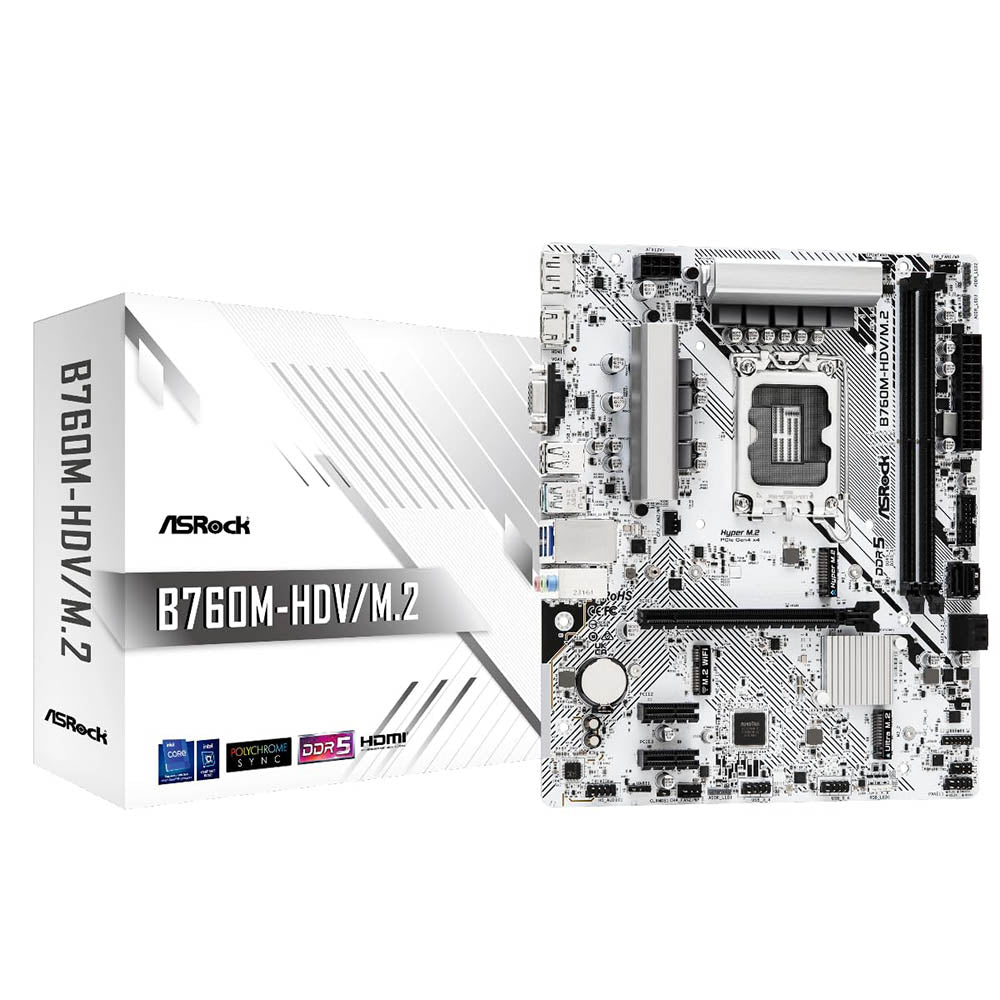

ASROCK B760M-HDV/M.2 D5 mATX

ASROCK B760M-HDV/M.2 D5 mATX

Dhs. 730.00
Dhs. 899.00 Dhs. 730.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Motherboard

SKU : CTSH1104

Tags : Motherboard,

Collections : Motherboards,

Availability : In Stock

Shipping & Returns

Free shipping available on all orders above AED 499!
We ship all UAE domestic orders within 1-2 business days!

View full details

Processor Support

  • Socket Type: LGA1700
  • Supported Processors:
    • 14th Gen Intel® Core™ Processors
    • 13th Gen Intel® Core™ Processors
    • 12th Gen Intel® Core™ Processors

Power Design

  • Power Phase Configuration: 7+1+1 Power Phase Design for optimal power delivery and stability during heavy workloads.

Memory Support

  • Memory Type: DDR5
  • Memory Slots:
    • 2 x DIMM slots
  • Dual Channel Support: Yes
  • Maximum Memory Speed: Up to 7200+ MHz (Overclocked)
  • Maximum Memory Capacity:
    • Supports up to 64GB (32GB per DIMM)

Expansion Slots

  • PCIe Slots:
    • 1 x PCIe 4.0 x16 Slot (for high-performance graphics cards)
    • 2 x PCIe 3.0 x1 Slots (for additional expansion cards)
    • 1 x M.2 Key E Slot (for WiFi module)

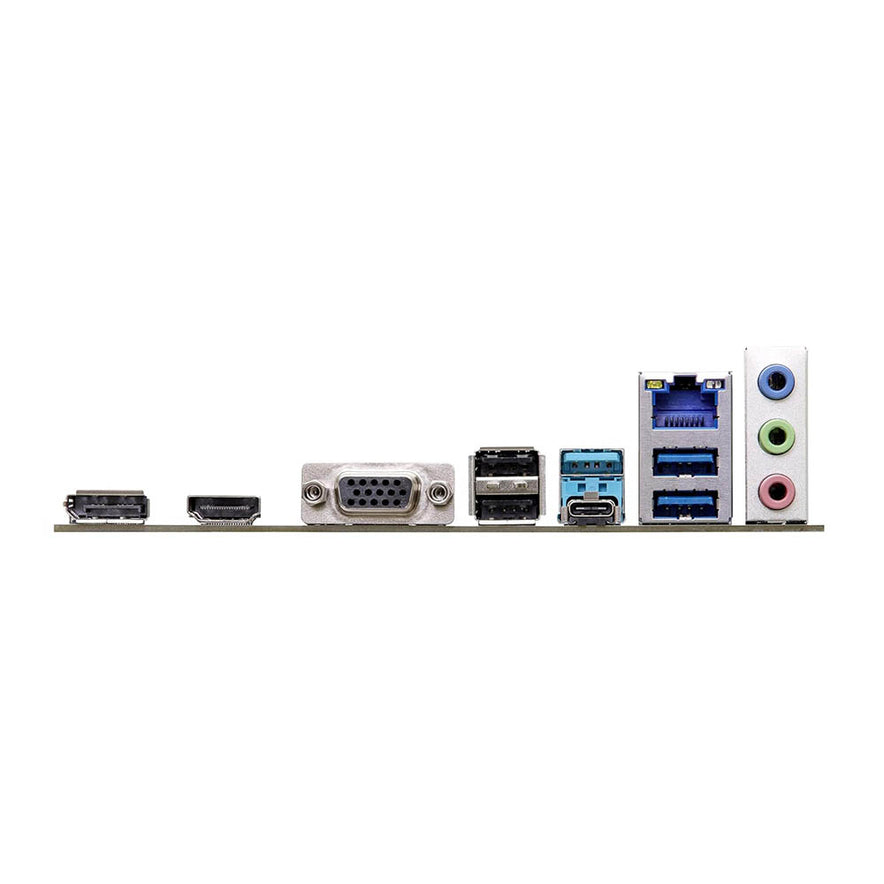

Graphics Output

  • Output Options:
    • 1 x HDMI Port
    • 1 x DisplayPort
    • 1 x D-Sub (VGA) Port

Audio

  • Audio Codec: Realtek ALC897
  • Audio Channels: 7.1 CH HD Audio for a rich sound experience

Storage Options

  • SATA Ports:
    • 4 x SATA3 (6.0 Gb/s) Connectors for traditional hard drives and SSDs
  • M.2 Slots:
    • 1 x Hyper M.2 Slot (supports PCIe Gen4 x4 for NVMe SSDs)
    • 1 x Ultra M.2 Slot (supports PCIe Gen3 x4 for NVMe SSDs)

USB Connectivity

  • USB Ports:
    • 1 x USB 3.2 Gen1 Type-C (Rear)
    • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    • 6 x USB 2.0 Ports (2 Rear, 4 Front)

Networking

  • LAN:
    • Dragon 2.5G LAN for high-speed wired networking

Additional Features

  • Driver Installation Utility:
    • Supports ASRock Auto Driver Installer for seamless setup and updates

Form Factor

  • Type: Micro ATX (mATX)

Operating System Compatibility

  • Supported OS:
    • Windows 10 (64-bit)
    • Windows 11 (64-bit)
