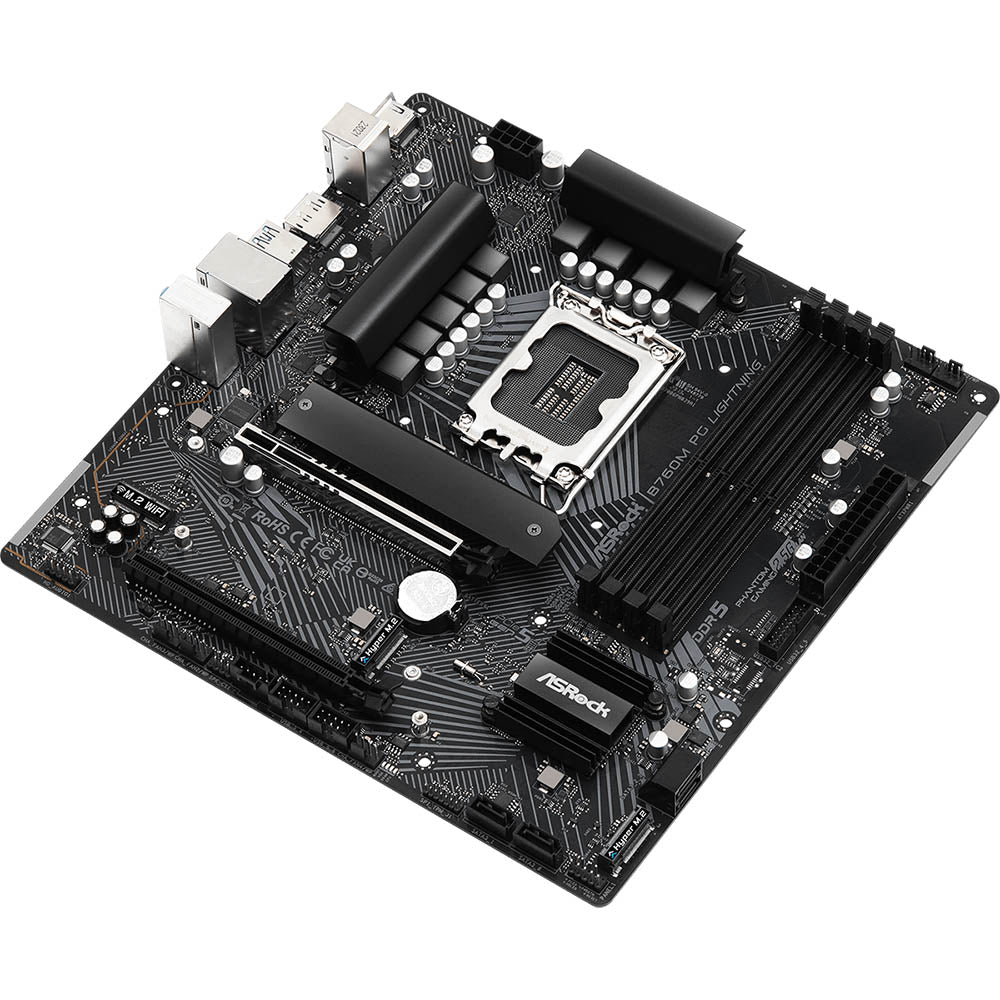

ASRock B760M PG Lightning D5 mATX

Processor Support:

• Socket Type: LGA1700
• Compatible CPUs: Supports 14th, 13th, and 12th Generation Intel® Core™ Processors

Power Design:

• Power Phases: 7+1+1 Power Phase Design
• Power Delivery: Dr.MOS for VCore and Graphics

Memory:

• Memory Slots: 4 x DDR5 DIMMs
• Memory Support: Dual Channel Architecture
• Maximum Memory Speed: Up to 7200+ MHz (Overclocked)
• Maximum Memory Capacity: Not specified (Typically up to 128GB with 4 DIMMs)

Expansion Slots:

• PCIe Slots:
  • 1 x PCIe 5.0 x16 Slot
  • 1 x PCIe 3.0 x16 Slot
  • 1 x M.2 Key E Slot for WiFi Module

Graphics Output:

• Output Options:
  • 1 x HDMI Port
  • 1 x DisplayPort

Audio:

• Audio Codec: Realtek ALC897 7.1 CH HD Audio Codec
• Audio Enhancement: Nahimic Audio Technology

Storage:

• SATA Ports: 4 x SATA3 6.0 Gb/s Connectors
• M.2 Slots:
  • 3 x Hyper M.2 Slots (supports PCIe Gen4 x4 for NVMe SSDs)

USB Connectivity:

• USB Ports:
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 Ports (2 Rear, 4 Front)

Networking:

• LAN: Dragon 2.5G LAN for high-speed internet connectivity
• WiFi Support: Supports WiFi module via M.2 Key E slot

Additional Features:

• Driver Installation: Supports ASRock Auto Driver Installer for easy setup

Form Factor:

• Type: Micro ATX (mATX)

Operating System Compatibility:

• Supports Windows 10 and Windows 11

Certification:

• Complies with relevant safety and environmental standards
