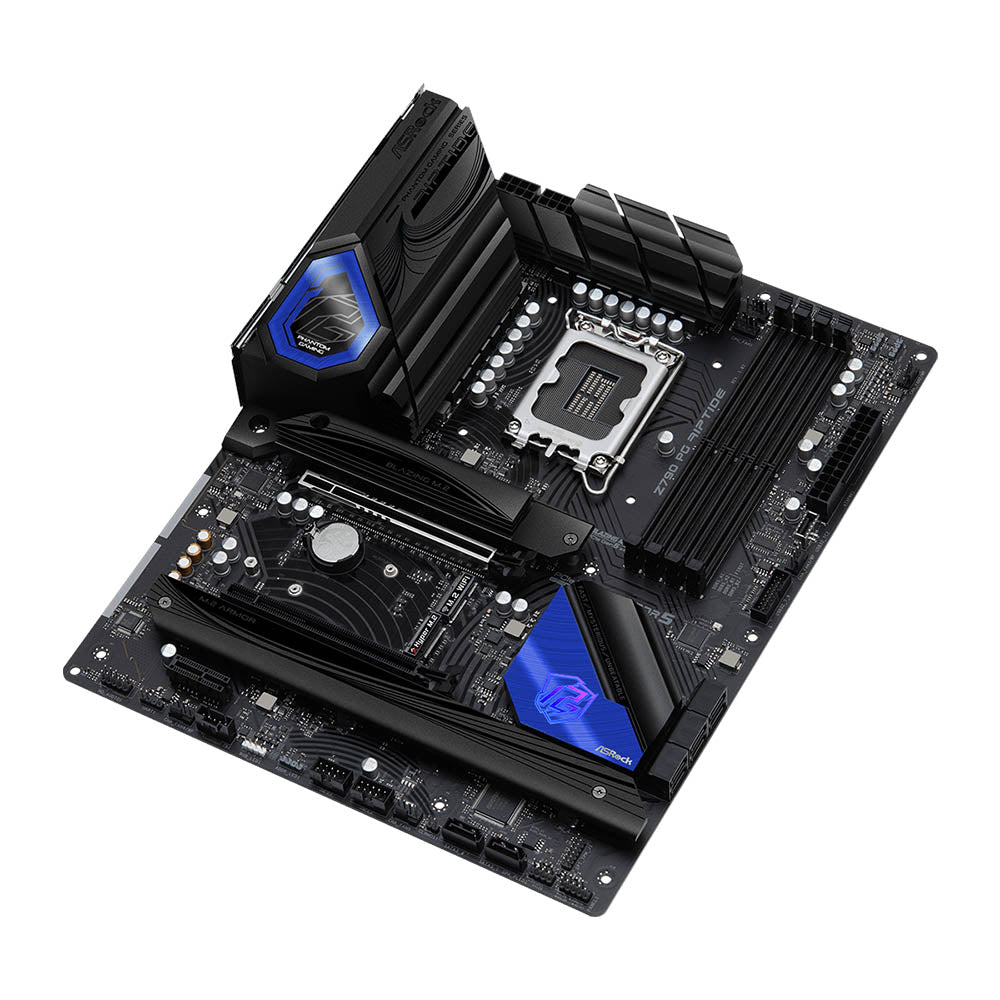

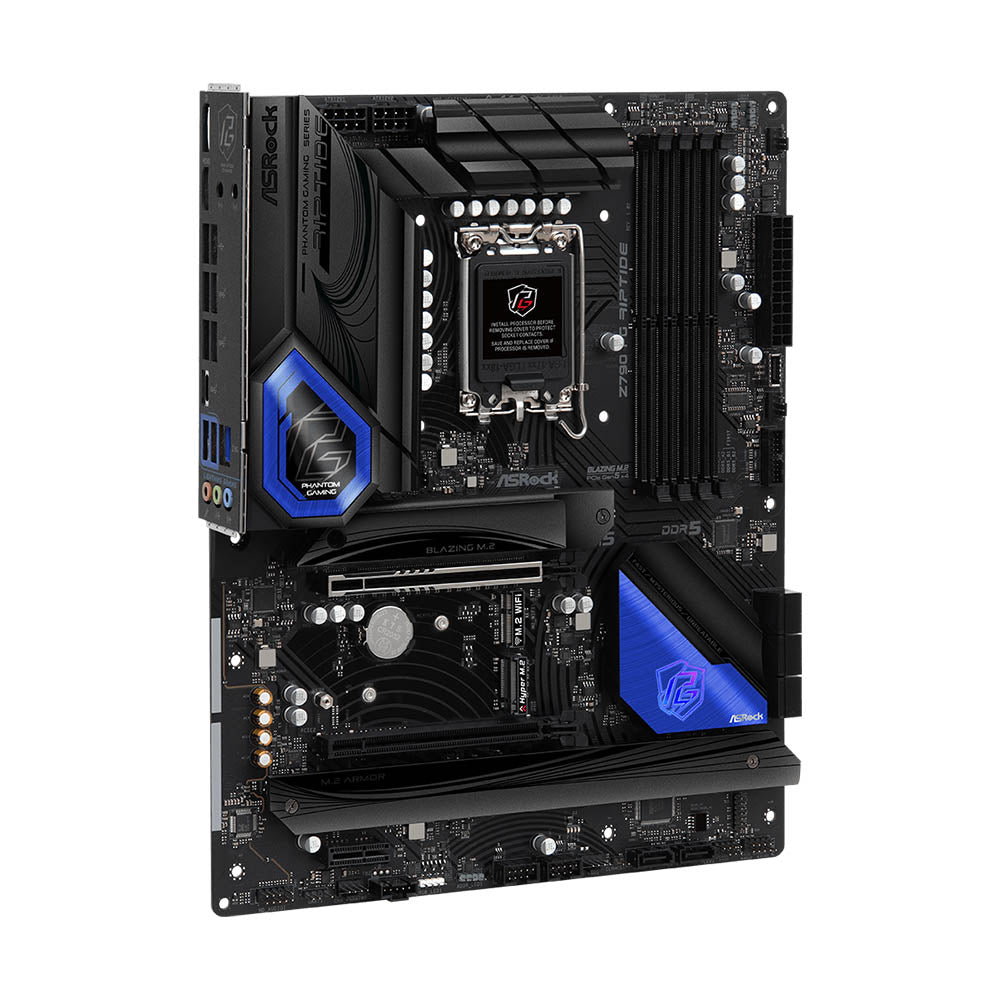

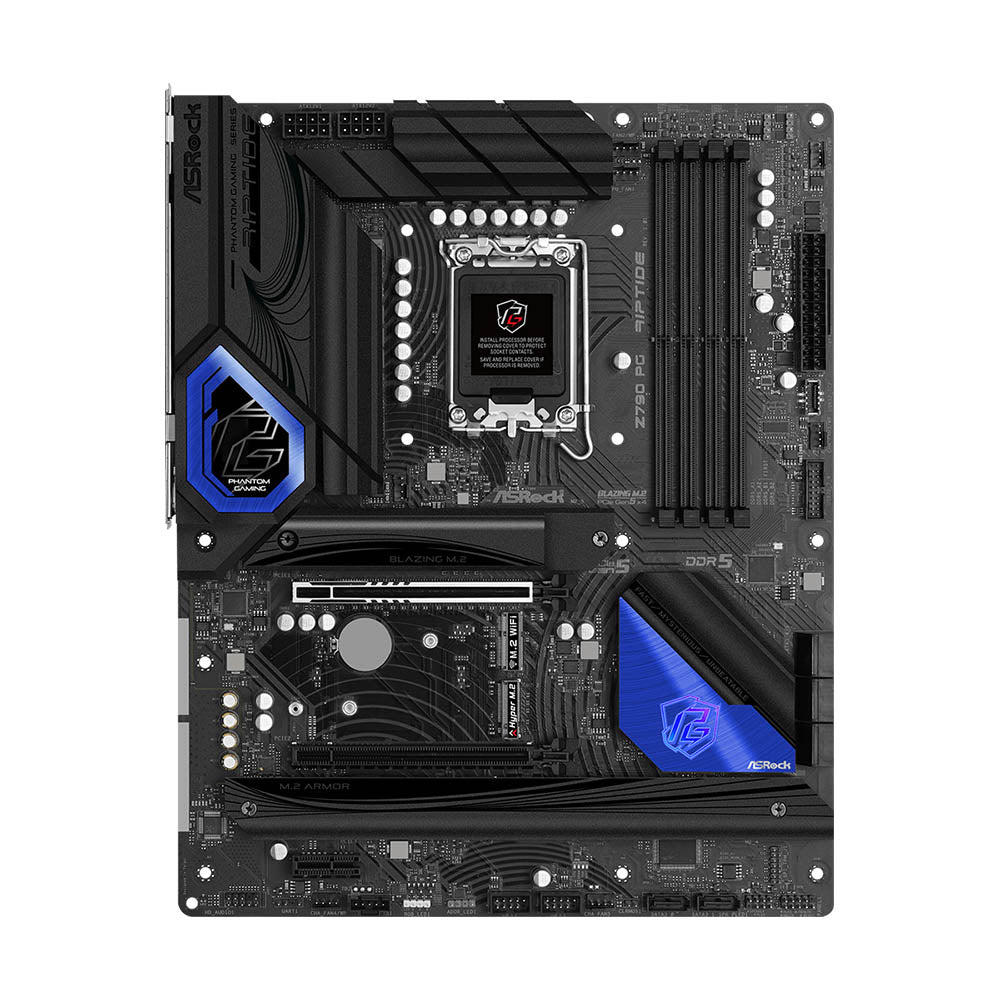

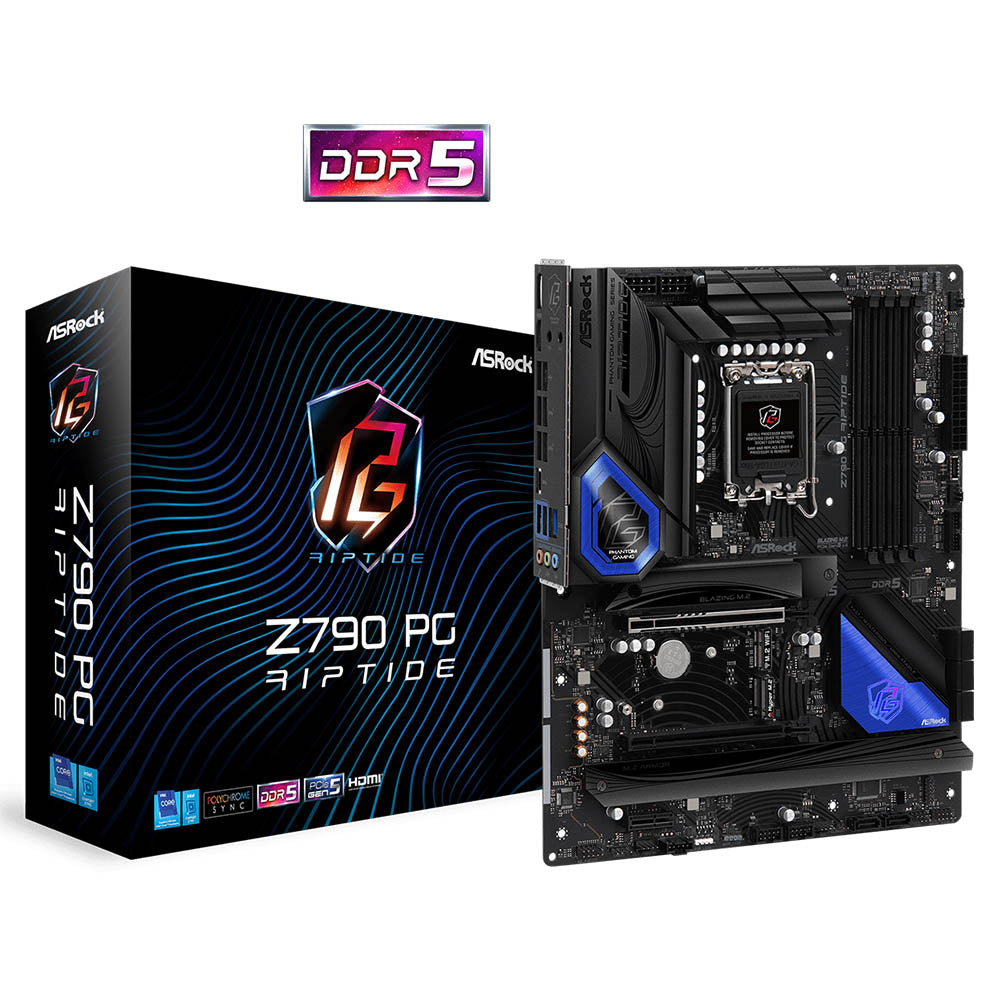

ASRock Z790 PG Riptide D5 ATX Motherboard – Unleash Next-Gen Gaming with DDR5 and PCIe 5.0

ASRock Z790 PG Riptide D5 ATX Motherboard – Unleash Next-Gen Gaming with DDR5 and PCIe 5.0

Dhs. 1,199.00
Dhs. 1,399.00 Dhs. 1,199.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Type : Motherboard

SKU : CTSH1096

Tags : asrock, asrock-motherboard, Motherboard,

Collections : Motherboards,

Availability : In Stock

Shipping & Returns

Free shipping available on all orders above AED 499!
We ship all UAE domestic orders within 1-2 business days!

View full details

General:

  • Model: ASROCK Z790 PG Riptide D5
  • Form Factor: ATX
  • Socket: Intel LGA 1700
  • Chipset: Intel Z790
  • Processor Support: Supports Intel 12th and 13th Gen Core Processors (Alder Lake, Raptor Lake)
  • Supported Memory: Dual-channel DDR5, up to 192GB

Memory:

  • Memory Type: DDR5
  • Memory Slots: 4 x DIMM slots
  • Maximum Memory: Up to 192GB
  • Memory Speed: Supports DDR5 7200+ MHz (OC)
  • XMP Support: Intel Extreme Memory Profile (XMP) 3.0

Expansion Slots:

  • PCIe x16 Slots:
    • 1 x PCIe 5.0 x16 (x16 mode)
    • 1 x PCIe 4.0 x16 (x4 mode)
    • 1 x PCIe 3.0 x16 (x4 mode)
  • PCIe x1 Slots: 1 x PCIe 3.0 x1 slot
  • M.2 Slots:
    • 1 x PCIe Gen5 M.2 slot (for storage)
    • 3 x PCIe Gen4 M.2 slots (for storage)
  • SATA Ports: 8 x SATA 6Gb/s ports

Storage:

  • M.2 Support:
    • 1 x PCIe Gen5 x4 M.2 slot (up to 128Gb/s transfer speed)
    • 3 x PCIe Gen4 x4 M.2 slots (up to 64Gb/s transfer speed)
    • Supports NVMe SSDs
  • SATA Ports: 8 x SATA 6Gb/s connectors
  • RAID Support: RAID 0, 1, 5, 10 for SATA storage

Connectivity:

  • Ethernet:
    • 1 x Killer E3100G 2.5G LAN
  • Wi-Fi: Optional (via add-on card; supports Wi-Fi 6E modules)
  • Bluetooth: Optional with add-on card
  • USB Ports:

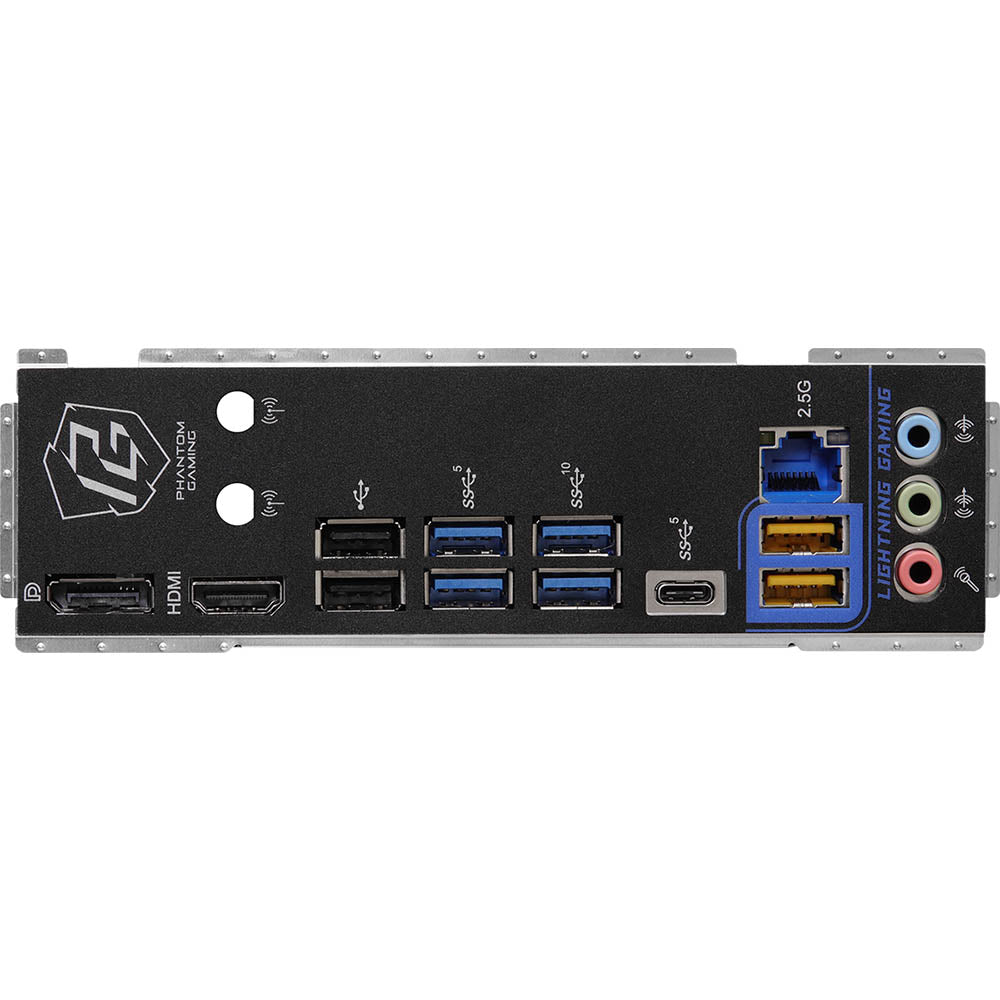

    • Rear I/O:
      • 1 x USB 3.2 Gen2x2 Type-C
      • 3 x USB 3.2 Gen2 Type-A
      • 4 x USB 3.2 Gen1 Type-A
      • 2 x USB 2.0 Type-A
    • Internal Headers:
      • 1 x USB 3.2 Gen2x2 front panel header
      • 2 x USB 3.2 Gen1 headers
      • 2 x USB 2.0 headers
  • Audio: Realtek ALC897 7.1-channel HD audio codec

Display Outputs:

  • HDMI: 1 x HDMI 2.1 port (supports up to 4K @ 60Hz)

Audio:

  • Audio Codec: Realtek ALC897
  • Audio Channels: 7.1-channel HD audio with premium audio capacitors
  • Optical S/PDIF: No

Power & Cooling:

  • Power Phases: 14+1+1 Dr.MOS Power Phase Design
  • Cooling:
    • Large aluminum alloy heatsinks for VRM cooling
    • 2oz copper PCB layers for enhanced heat dissipation
    • Multiple fan headers and pump headers
    • 1 x dedicated CPU fan header
    • 1 x water pump header

BIOS:

  • UEFI BIOS: ASRock UEFI BIOS with an intuitive interface for easy configuration
  • BIOS Features:
    • Supports overclocking
    • BIOS Flashback feature
    • Instant Flash & Internet Flash for BIOS updates

RGB & Customization:

  • RGB Support: ASRock Polychrome Sync (supports addressable RGB and RGB LED headers)
  • Lighting: Subtle built-in RGB lighting on the motherboard with customizable effects
  • RGB Headers:
    • 2 x Addressable RGB headers
    • 2 x Standard RGB headers

Other Features:

  • Durable Construction: 6-layer PCB with 2oz copper for enhanced signal integrity and thermal performance
  • Reinforced PCIe Slot: Steel-reinforced PCIe 5.0 slot to support heavy graphics cards
  • Thunderbolt 4 Header: Yes (ready for Thunderbolt 4 via add-on card)

Ergonomics & Design:

  • High Durability: Steel reinforced PCIe slots and premium components ensure long-term reliability
  • Smart Layout: Easy cable management and component installation with well-designed headers and connectors

Dimensions:

  • Form Factor: ATX
  • Dimensions: 30.5 cm x 24.4 cm
