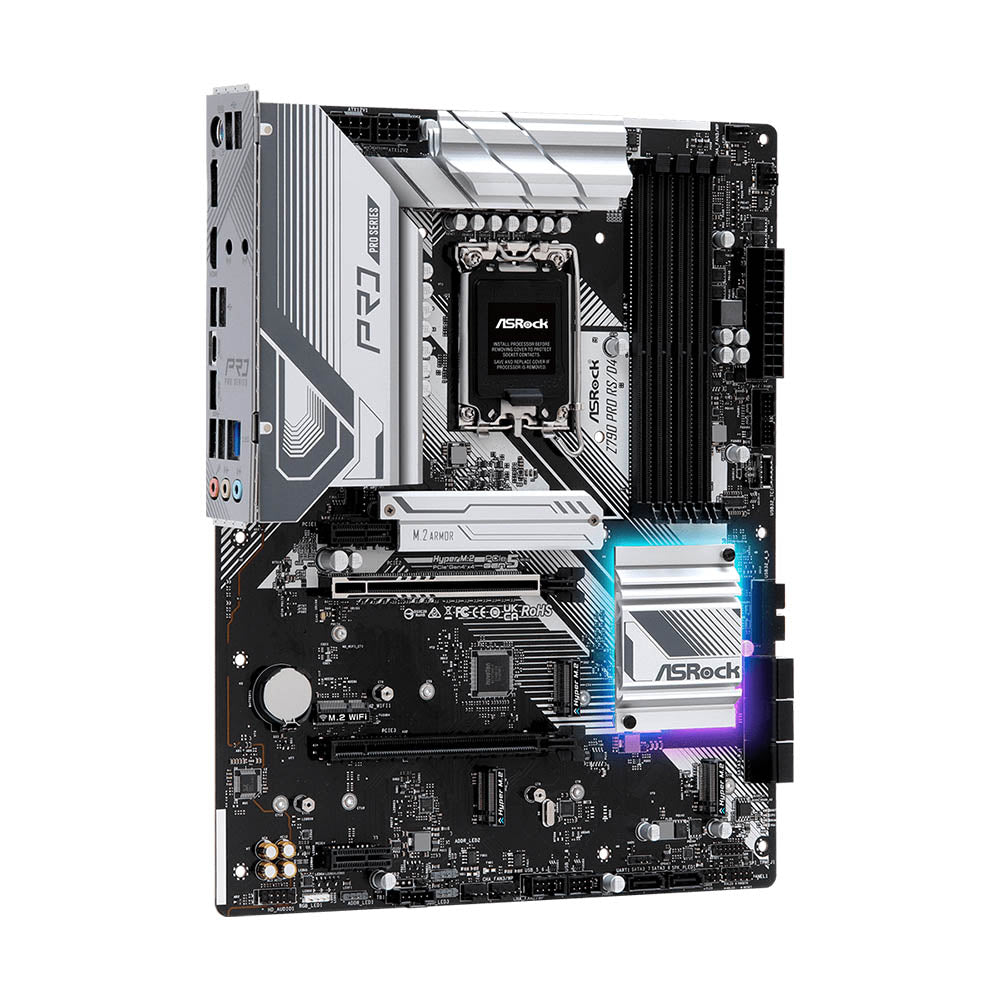

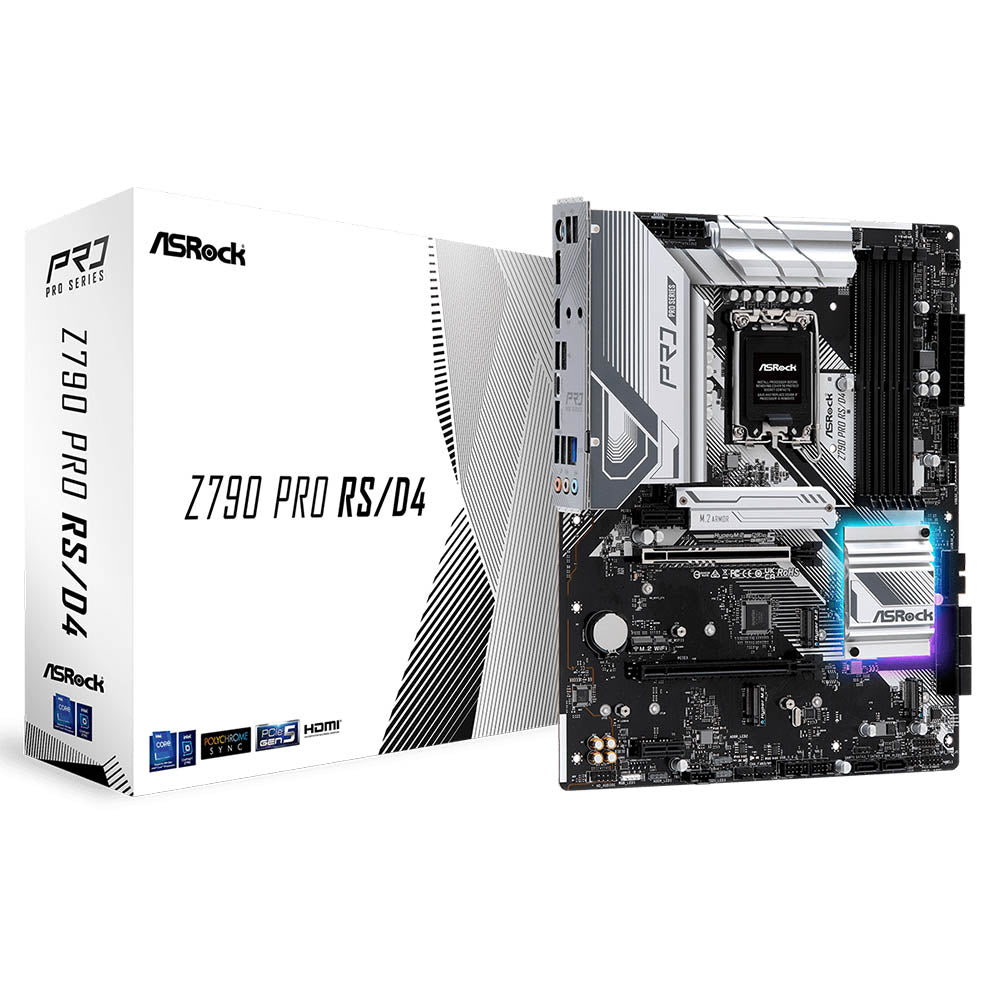

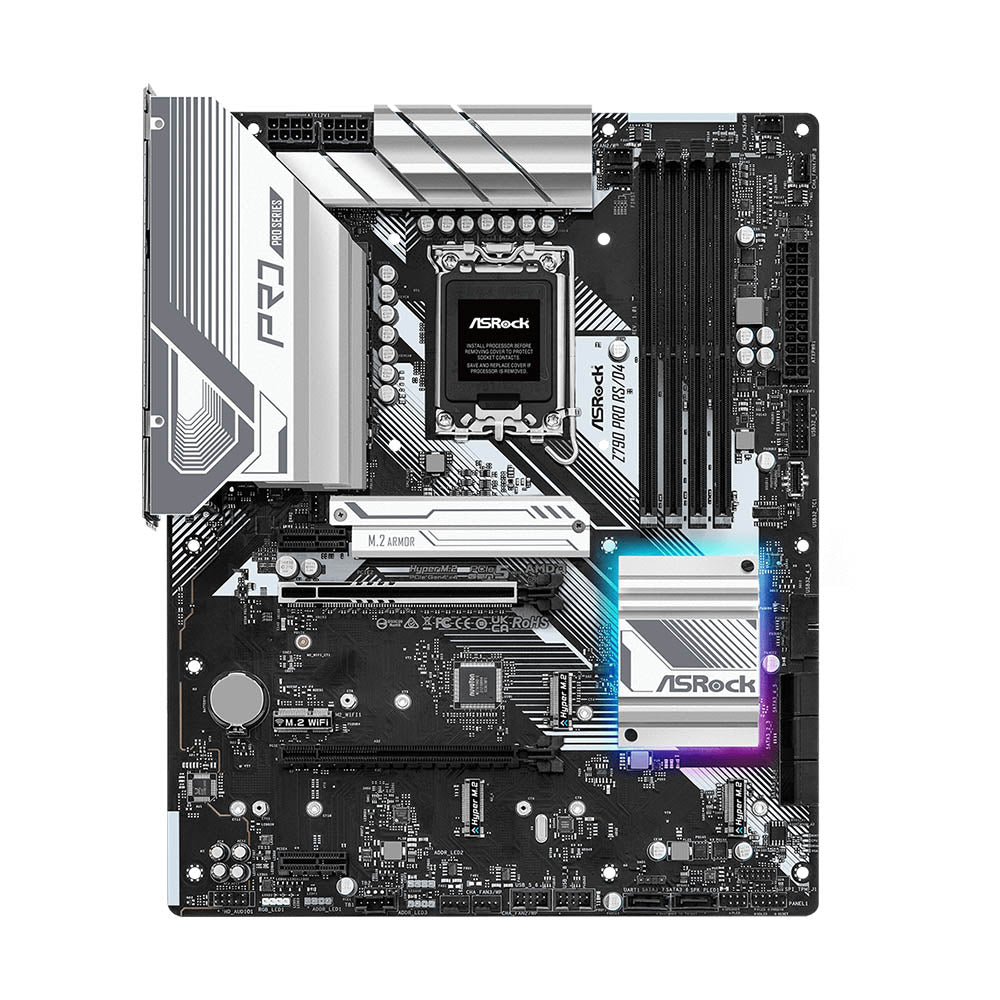

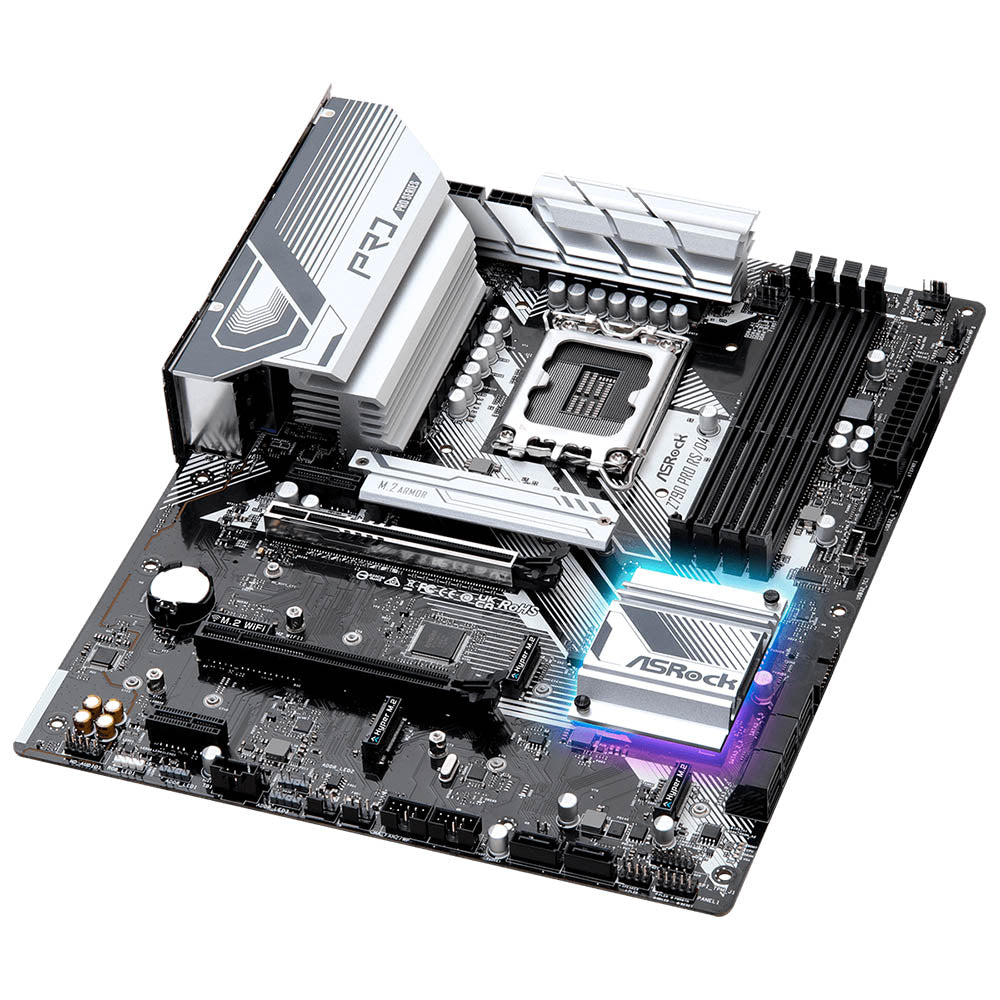

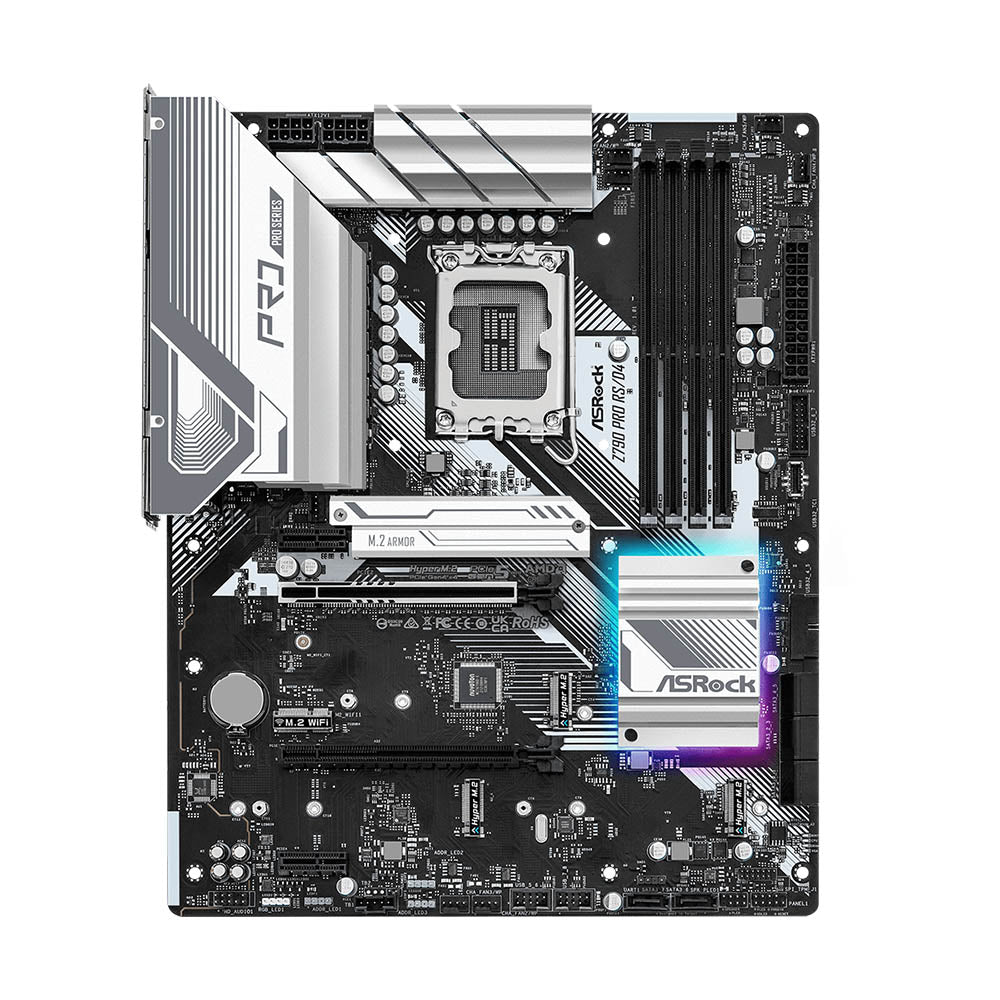

ASROCK Z790 Pro RS/D4 ATX Motherboard

General:

• Model: ASROCK Z790 Pro RS/D4
• Form Factor: ATX
• Socket: Intel LGA 1700
• Chipset: Intel Z790
• Processor Support: Intel 12th and 13th Gen Core Processors (Alder Lake, Raptor Lake)
• Supported Memory: Dual-channel DDR4, up to 128GB

Memory:

• Memory Type: DDR4
• Memory Slots: 4 x DIMM slots
• Maximum Memory: Up to 128GB
• Memory Speed: Supports DDR4 5333+ MHz (OC)
• XMP Support: Intel Extreme Memory Profile (XMP) 2.0

Expansion Slots:

• PCIe x16 Slots:
  • 1 x PCIe 5.0 x16 (x16 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x16 (x4 mode)
• PCIe x1 Slots: 2 x PCIe 3.0 x1 slots
• M.2 Slots:
  • 1 x PCIe Gen5 M.2 slot (for storage)
  • 2 x PCIe Gen4 M.2 slots (for storage)
• SATA Ports: 4 x SATA 6Gb/s ports

Storage:

• M.2 Support:
  • 1 x PCIe Gen5 x4 M.2 slot (up to 128Gb/s transfer speed)
  • 2 x PCIe Gen4 x4 M.2 slots (up to 64Gb/s transfer speed)
  • Supports NVMe SSDs
• SATA Ports: 4 x SATA 6Gb/s connectors
• RAID Support: RAID 0, 1, 5, 10 for SATA storage

Connectivity:

• Ethernet:
  • 1 x Intel 2.5G LAN
• Wi-Fi: Optional (via add-on card; supports Wi-Fi 6/6E modules)
• Bluetooth: Optional with add-on card
• USB Ports:

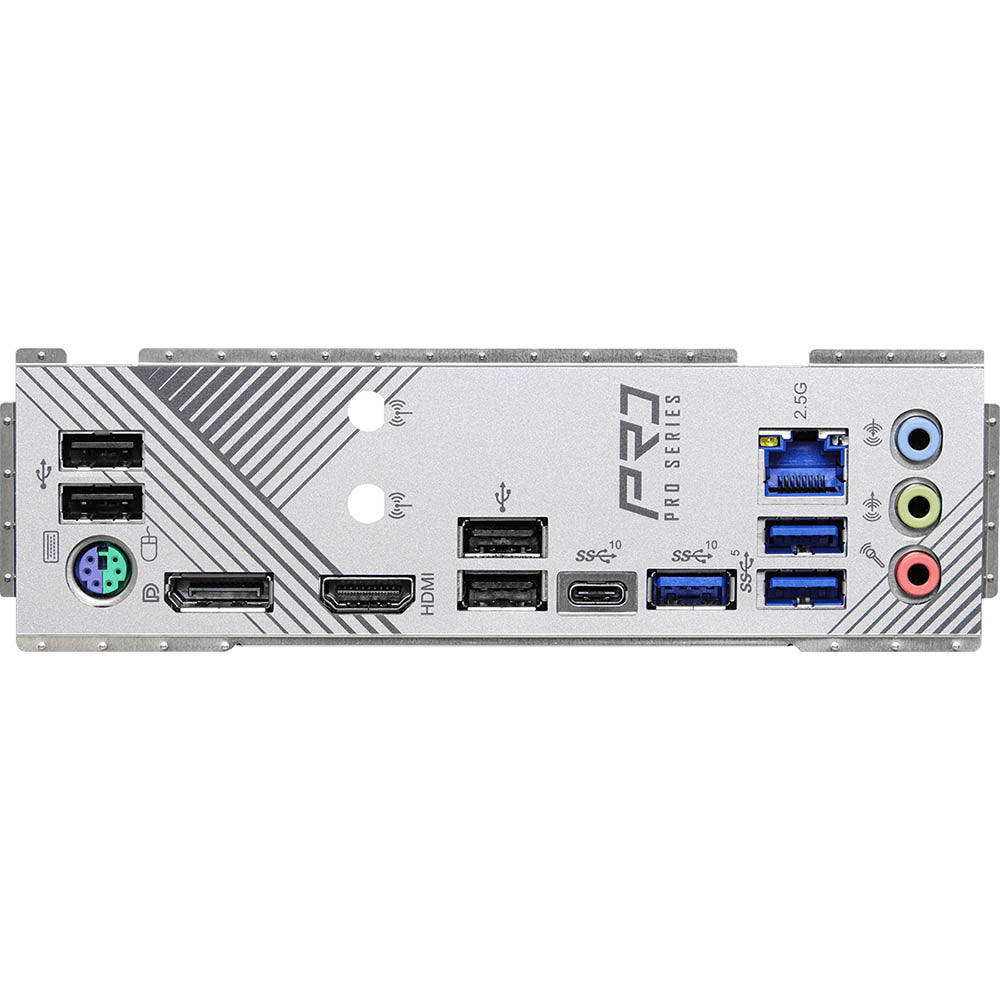

  • Rear I/O:
    • 1 x USB 3.2 Gen2x2 Type-C
    • 2 x USB 3.2 Gen2 Type-A
    • 4 x USB 3.2 Gen1 Type-A
    • 2 x USB 2.0 Type-A
  • Internal Headers:
    • 1 x USB 3.2 Gen2 front panel header
    • 2 x USB 3.2 Gen1 headers
    • 2 x USB 2.0 headers
• Audio: Realtek ALC897 7.1-channel HD audio codec

Display Outputs:

• HDMI: 1 x HDMI 2.1 port (supports up to 4K @ 60Hz)
• DisplayPort: 1 x DisplayPort 1.4

Audio:

• Audio Codec: Realtek ALC897
• Audio Channels: 7.1-channel HD audio with premium audio capacitors
• Optical S/PDIF: No

Power & Cooling:

• Power Phases: 14+1+1 Dr.MOS Power Phase Design
• Cooling:
  • Large aluminum alloy heatsinks for VRM cooling
  • 2oz copper PCB layers for enhanced heat dissipation
  • Multiple fan headers and pump headers
  • 1 x dedicated CPU fan header
  • 1 x water pump header

BIOS:

• UEFI BIOS: ASRock UEFI BIOS with an intuitive interface for easy configuration
• BIOS Features:
  • Overclocking support
  • BIOS Flashback feature
  • Instant Flash & Internet Flash for BIOS updates

RGB & Customization:

• RGB Support: ASRock Polychrome Sync (supports addressable RGB and RGB LED headers)
• Lighting: Subtle built-in RGB lighting on the motherboard with customizable effects
• RGB Headers:
  • 2 x Addressable RGB headers
  • 2 x Standard RGB headers

Other Features:

• Durable Construction: 6-layer PCB with 2oz copper for enhanced signal integrity and thermal performance
• Reinforced PCIe Slot: Steel-reinforced PCIe 5.0 slot to support heavy graphics cards
• Thunderbolt 4 Header: Yes (ready for Thunderbolt 4 via add-on card)

Ergonomics & Design:

• High Durability: Steel-reinforced PCIe slots and premium components ensure long-term reliability
• Smart Layout: Easy cable management and component installation with well-designed headers and connectors

Dimensions:

• Form Factor: ATX
• Dimensions: 30.5 cm x 24.4 cm
