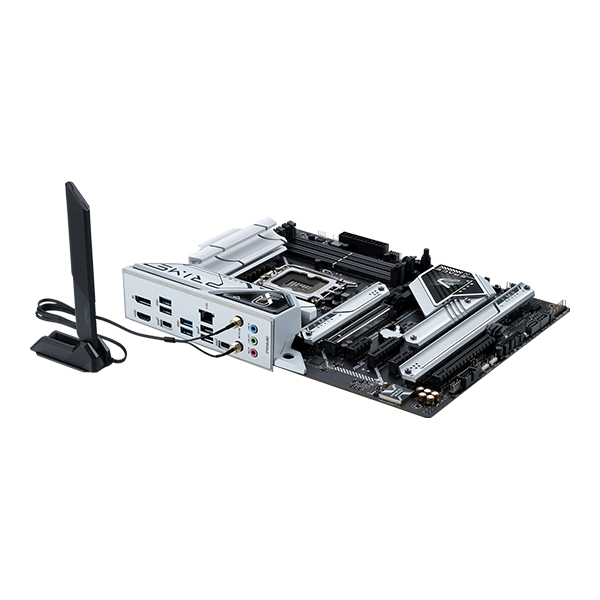

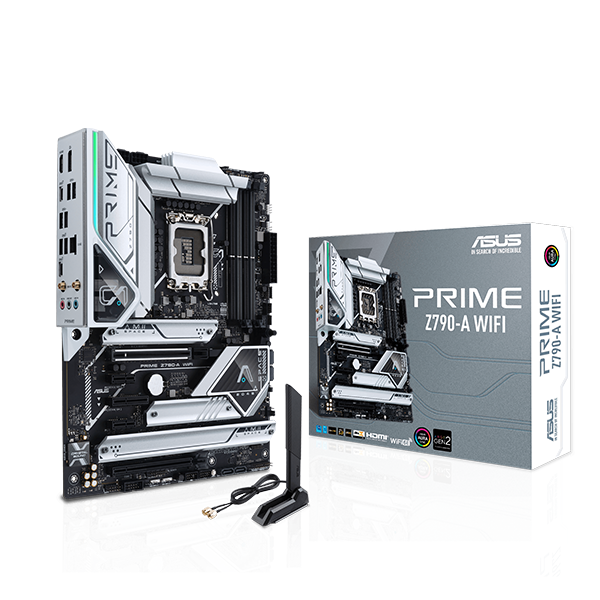

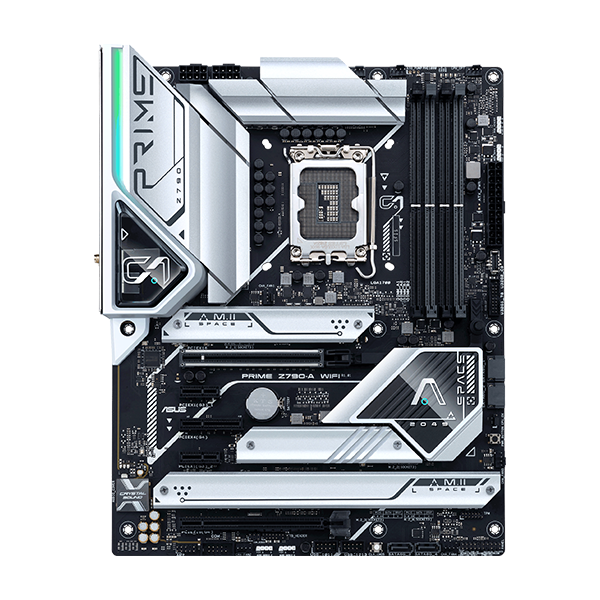

ASUS PRIME Z790-A WIFI MOTHER BOARD

CPU Support:

• Socket: LGA1700
• Compatible Processors: 13th Gen Intel® Core™, 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors (Refer to www.asus.com for CPU support list.)
• Turbo Boost Technology: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Support for Intel® Turbo Boost Max Technology 3.0 depends on the CPU types.)

Chipset: Intel® Z790 Chipset

Ethernet:

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless:

• M.2 slot only (Key E, CNVi & PCIe) for Wi-Fi module (sold separately).

USB Ports:

• Rear USB (Total 8 Ports):
  • 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (Type-A)
  • 2 x USB 3.2 Gen 1 ports (Type-A)
  • 4 x USB 2.0 ports (Type-A)
• Front USB (Total 9 Ports):
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers (supports 4 additional USB 3.2 Gen 1 ports)
  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

Memory Support:

• Slots: 4 x DIMM, Max. 128GB
• Type: DDR4/DDR5 (speed varies depending on CPU support)
• Supported Speeds:
  • DDR4: 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
  • DDR5: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

Internal I/O Connectors:

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power Related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
• Storage Related:
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Power button
  • 1 x Thunderbolt™ (USB4®) header

Expansion Slots:

• 1 x PCIe 5.0 x16 slot (for Intel® 13th & 12th Gen Processors)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 4.0 x1 slots

Graphics Device:

• 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4)
• 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1)

Audio:

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Audio Features:
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Supports up to 32-Bit/192 kHz playback

Operating System Support: Windows® 11, Windows® 10 64-bit

Form Factor:

• ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
• mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Warranty: 2 Year Warranty
